Handheld Drone Detector with High Sensitivity and Long Battery Life for UAV Detection LDKW07 Lightweight drone detection anti drone system

Место происхождения	Гуандун, Китай
Фирменное наименование	LDSK
Номер модели	ЛДСКВК07
Количество мин заказа	1
Цена	$400
Упаковывая детали	Картон
Время доставки	1 рабочие дни
Условия оплаты	D/A, D/P, T/T, Western Union, Moneygram, PayPal
Поставка способности	50000pcs в месяц

Свяжитесь со мной для бесплатных образцов и купонов.

Ватсап:0086 18588475571

Вичат: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.

Подробная информация о продукте

Полоса частоты обнаружения	300 МГц – 6200 МГц	Радиус обнаружения	≥ 1 км (типичные условия)
Время ответа	3 ~ 5 с	Время выносливости	3 ~ 4H
Выделять	Устройство обнаружения анти дронов 6000 МГц, носимое устройство для обнаружения лекарств	Режимы тревоги	Наушники, звуковая и световая сигнализация
Емкость журнала тревог	≥ 500 записей тревог	Срок службы батареи	≥ 6 часов (одна батарея)
Выделить	handheld drone detector with high sensitivity , lightweight drone detection system , UAV detector with long battery life

Оставьте сообщение

Характер продукции

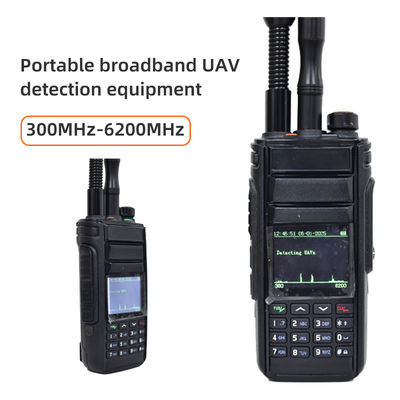

LDKW07 Handheld Drone Detector/Drone detection — 300–6200 MHz FPV & DJI & Autel & racing drone UAV Detection System

Product Overview

The LDKW07 Portable Broadband UAV Detection Equipment is a lightweight, highly integrated drone detector built for rapid, reliable detection of mainstream rotary-wing drones (DJI, Docom) and DIY FPV drones. It passively scans a very wide frequency range (300 MHz–6200 MHz), supports multi-channel simultaneous scanning with dual antennas, and delivers fast detection, high sensitivity, long range, and a low false-alarm rate — all in a compact, easy-to-use package.

Key Benefits (Why choose LDKW07)

Wideband coverage: detects both OFDM HD image transmission and FM analog FPV transmissions across 300–6200 MHz.
Long detection distance: reliably detects drones at ≥1 km under typical conditions.
High sensitivity: detection sensitivity better than -96 dBm for weak signals.
Portable and durable: light (≈500 g) with removable lithium battery and type-C charging — 6+ hours runtime per battery.
Fast, flexible scanning: default scanning, key frequency band scanning, and user-defined feature library.
Low false alarms: multi-channel scanning + dual antenna design reduces false positives.
Easy records & export: alarm log (≥500 records) and firmware/feature updates via MicroUSB.
Multi-language UI: English, Chinese, Russian.

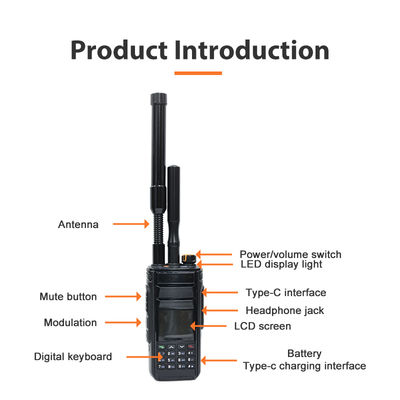

Main Functions & Features

Passive UAV detection: Identifies OFDM HD image transmission used by mainstream consumer drones and FM analog image transmission used by many FPV systems.
Multi-mode scanning: Default mode, key band scan, and custom feature-library scanning (user can modify/add via USB).
Real-time spectrum display: Visualize signal strength across 300–6200 MHz.
Alarm methods: Headphone alarm, external sound & light alarm; headphone audio output supported.
Data & upgrade: Alarm log export and firmware upgrade via MicroUSB.
Field usability: Low power consumption design, compact dimensions, and easy operation for security teams or mobile patrols.

Technical Specifications

Item	Description
Model	LDKW07
Receiving Frequency Range	300 MHz – 6200 MHz
Detectable Signal Types	OFDM HD image transmission and FM analog image transmission (FPV)
Detection Distance	≥ 1 km (typical conditions)
Detection Sensitivity	Better than -96 dBm
Alarm Modes	Headphones, sound and light alarm
Alarm Log Capacity	≥ 500 alarm records
Upgrade / Data Export Interface	MicroUSB
Power Supply	Removable lithium battery (Type-C charging)
Battery Life	≥ 6 hours (single battery)
Display Interface	Built-in screen, supports English/Chinese/Russian
Operation Modes	Default scan / Key frequency scan / Custom frequency scan

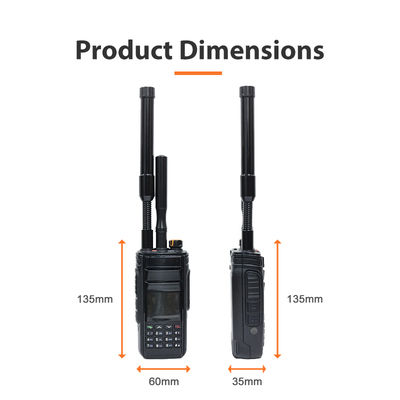

Dimensions (Host)	135 × 60 × 35 mm (excluding antenna)
Weight	≈ 500 g (including one battery)
Working Temperature	-10°C to +55°C
Storage Temperature	-20°C to +60°C
Humidity	≤ 90% RH (non-condensing)
