Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments

  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
Место происхождения Гуандун, Китай
Фирменное наименование LDSK
Номер модели LDSKL03
Количество мин заказа 1
Цена $4100
Время доставки 1 рабочие дни
Условия оплаты D/A, D/P, T/T, Western Union, Moneygram, PayPal
Поставка способности 5000 шт в месяц

Свяжитесь со мной для бесплатных образцов и купонов.

Ватсап:0086 18588475571

Вичат: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.

x
Подробная информация о продукте
Полоса частоты обнаружения 300 МГц~6 ГГц Радиус обнаружения 3 км (городская среда)
Время ответа 5 с Время выносливости 3 ~ 4H
Выделять Устройство обнаружения анти дронов 6000 МГц, носимое устройство для обнаружения лекарств
Выделить

CRPC+ Technology Handheld Drone Detector

,

RID Monitoring UAV Detector

,

Passive Detection Portable Drone Detection Device
Вы можете отметить нужные вам продукты и связаться с нами на доске объявлений.
Оставьте сообщение
Характер продукции

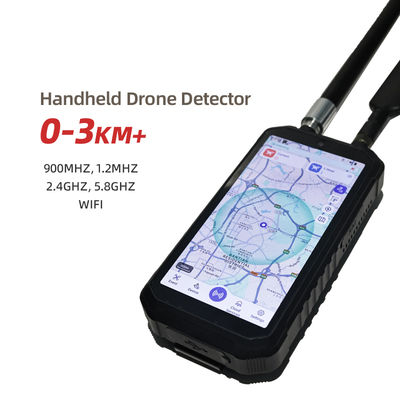

3KM Detection Handheld Drone Detection & Positioning System 300MHz–6GHz Full-Band Coverage
Product Description

The Handheld Drone Detection and Positioning Equipment (LDSKL03) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology and RID monitoring and identification technologies to detect, accurately identify, locate, and track low-altitude drones. The system is designed with high integration, compact size, and lightweight, primarily used for portable low-altitude security defense.



Cognitive Radio Protocol Cracking Technology (CRPC 2.0) is the fourth generation of drone defense technology. This technology uses an antenna array to monitor the radio environment within the defense area, continuously collecting radio signals 24 hours a day. The collected signals are transmitted to the signal processing unit, where drone signals are precisely demodulated and cracked. The analyzed drone signals are then sent to the data server via the network, where the data server manages the received drone signals uniformly

Applications include:
  • Event security and public safety
  • Border and perimeter monitoring
  • Airport and restricted area protection
  • Industrial facility security patrols
Product Specifications

Working Principle

Passive detection, does not emit any electromagnetic signals

Detection Bands

900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；

Sensitivity

≤-100dBm

Detection Distance

0~3km+ (Different exist due to different environments and drone type)

Response Time

≤5s

Detection Quantity

≥10 Drones (Simultaneous)

Number of Drone Trajectories

≥10 Drones (Simultaneous)

Position Accuracy

≤3m (Available for the drones can be decoded)

Drone Library (Geo-Locaation)

DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands

Dynamic Detection Movement Speed

≥60km/h  (Available for the drones can be decoded)

Screen Size

6.0 Inch

Battery Capacity

12000mAh

Endurance

3～4h

External Interface

Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1

Charging Power

DC9V, 2A

Charging Time

≤3h(0%-100%)

Power Consumption

≤15W

Size

177mm * 89mm * 29.5mm(±2mm)

Weight

≤580g(±0.05kg,without antenna)

≤46g per antenna

Operation Temperature

-20℃ to +50℃

Storage Environment

15～25℃

RH25～65%

IP Level

IP54

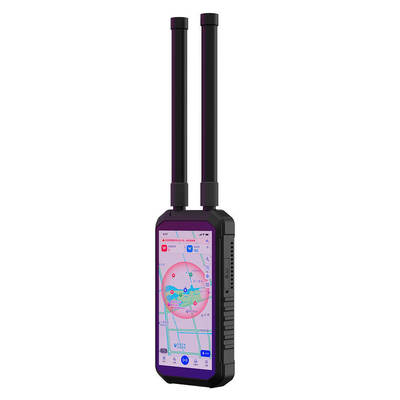

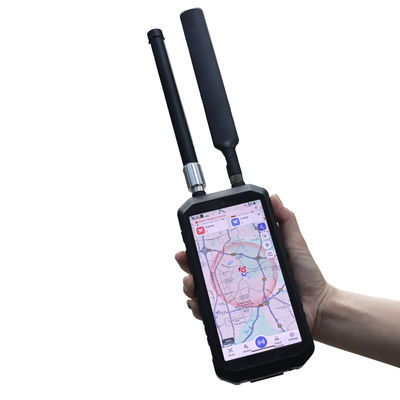

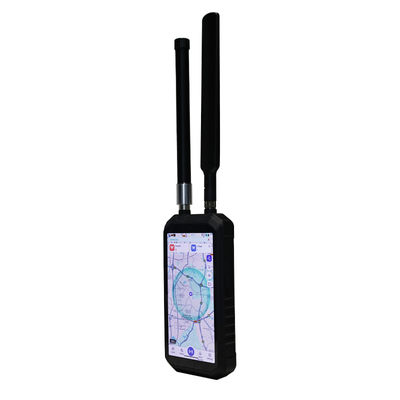

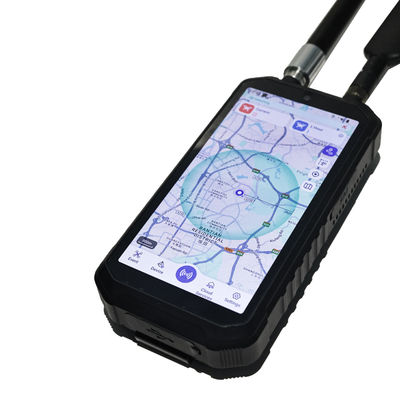

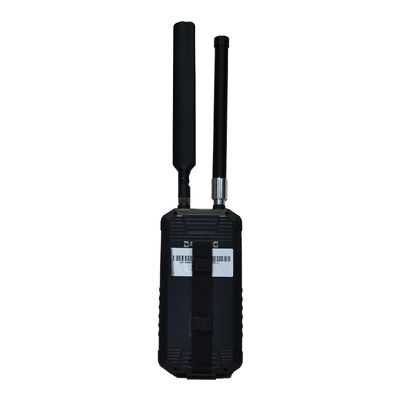

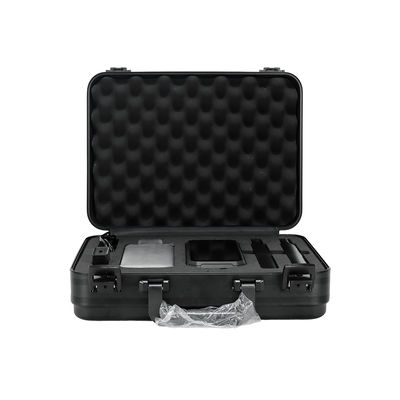

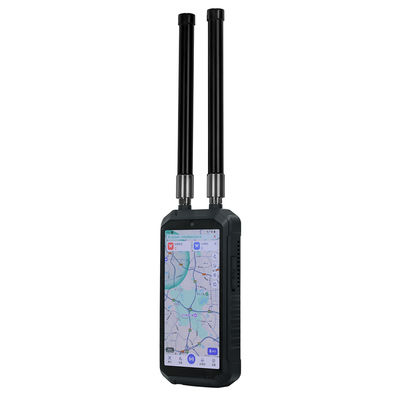

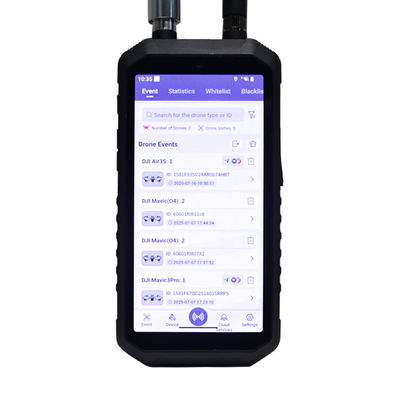

Product Images

Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments 0
